Represents an NMEA 0183 sentence. More...

#include <nmea0183.h>

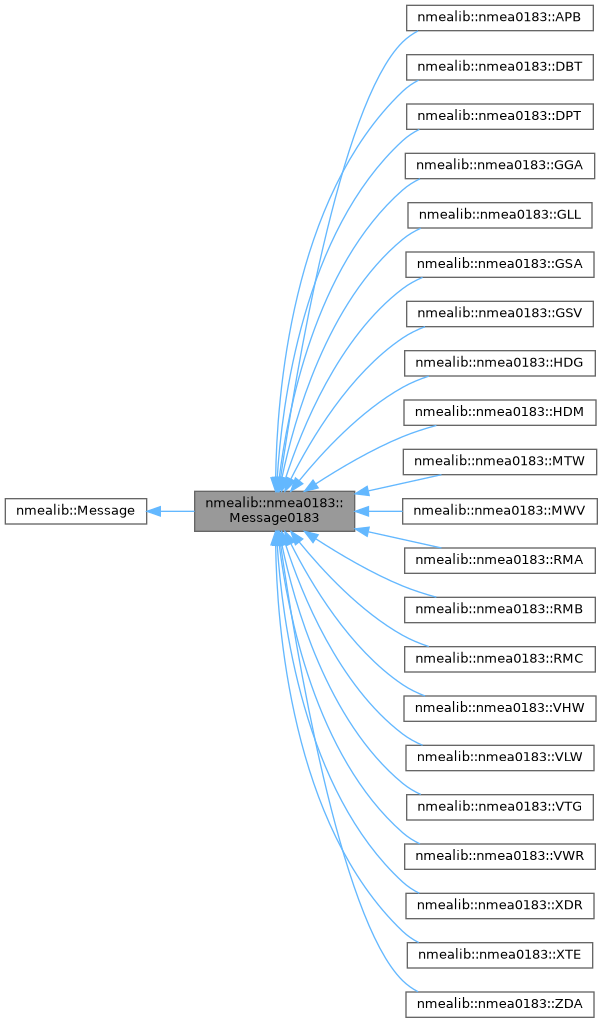

Inheritance diagram for nmealib::nmea0183::Message0183:

[legend]

Collaboration diagram for nmealib::nmea0183::Message0183:

Public Member Functions
	Message0183 (const Message0183 &)=default
	Copy constructor.

Message0183 &	operator= (const Message0183 &)=default
	Copy assignment operator.

	Message0183 (Message0183 &&) noexcept=default
	Move constructor.

Message0183 &	operator= (Message0183 &&) noexcept=default
	Move assignment operator.

	~Message0183 () override=default
	Destructor.

std::unique_ptr< nmealib::Message >	clone () const override
	Creates a polymorphic deep copy of this Message0183.

char	getStartChar () const noexcept
	Returns the start character of the NMEA 0183 sentence.

std::string	getTalker () const noexcept
	Returns the talker identifier extracted from the sentence.

std::string	getSentenceType () const noexcept
	Returns the sentence type identifier extracted from the sentence.

std::string	getPayload () const noexcept
	Returns the payload of the NMEA 0183 sentence.

std::string	getChecksumStr () const
	Get the checksum string extracted from the raw sentence.

std::string	getCalculatedChecksumStr () const noexcept
	Get the calculated checksum string for the sentence payload.

virtual std::string	getStringContent (bool verbose) const noexcept
	Returns a human-readable string representation of the message content.

std::string	serialize () const override
	Returns the wire-format representation of the NMEA 0183 sentence, that is, the raw information that was passed when the message was created.

bool	operator== (const Message0183 &other) const noexcept
	Compares two Message0183 objects for equality based on their content and timestamp.

bool	validate () const noexcept override
	Returns whether the message is valid or not.

Public Member Functions inherited from nmealib::Message
	Message ()

	Message (std::string raw, Type type=Type::Unknown, TimePoint ts=std::chrono::system_clock::now()) noexcept

virtual	~Message ()

	Message (const Message &)=default

Message &	operator= (const Message &)=default

	Message (Message &&) noexcept=default

Message &	operator= (Message &&) noexcept=default

Type	getType () const noexcept
	Returns the message type.

const std::string &	getRawData () const noexcept
	Returns the raw, unmodified data string as received.

TimePoint	getTimestamp () const noexcept
	Returns the timestamp associated with this message.

bool	operator== (const Message &other) const noexcept
	Compares two Message objects for equality based on their content.

Static Public Member Functions
static double	convertNmeaCoordinateToDecimalDegrees (const std::string &nmeaCoordinate)
	Converts an NMEA coordinate in ddmm.mmmm / dddmm.mmmm format to decimal degrees.

Static Public Member Functions inherited from nmealib::Message
static std::string	typeToString (Type t)
	Converts a Message::Type enum value to its string representation.

Protected Member Functions
std::string	toString (bool verbose) const noexcept
	Provides the common string representation for every NMEA 0183 message, which can be used by derived classes to implement their own getStringContent method.

Protected Member Functions inherited from nmealib::Message
void	setType (Type t) noexcept
	Sets the message type.

void	setRaw (std::string r) noexcept
	Sets the raw data string.

void	setTimestamp (TimePoint ts) noexcept
	Sets the message timestamp.

Static Protected Member Functions
static std::unique_ptr< Message0183 >	create (const std::string &raw, TimePoint ts=std::chrono::system_clock::now())
	Protected factory method to create a Message0183 from a raw sentence string.

Protected Attributes
char	startChar_

std::string	talker_

std::string	sentenceType_

std::string	payload_

std::string	checksumStr_

std::string	calculatedChecksumStr_

Protected Attributes inherited from nmealib::Message
std::string	rawData_

Type	type_ {Type::Unknown}

TimePoint	timestamp_ {}

Friends
class	Nmea0183Factory

Additional Inherited Members
Public Types inherited from nmealib::Message
enum class	Type { Unknown , NMEA0183 , NMEA2000 }
	Defines the type of NMEA message, allowing for differentiation between various standards. More...

using	TimePoint = std::chrono::system_clock::time_point

Detailed Description

Represents an NMEA 0183 sentence.

Attention

NMEA 0183 sentences are ASCII text strings that follow a specific format:

Messages have a maximum length of 82 characters, including the $ or ! starting character and the ending <LF>
The start character for each message can be either a $ (For conventional field delimited messages) or ! (for messages that have special encapsulation in them)
The next five characters identify the talker (two characters) and the type of message (three characters).
All data fields that follow are comma-delimited.
Where data is unavailable, the corresponding field remains blank
The first character that immediately follows the last data field character is an asterisk, but it is only included if a checksum is supplied.
The asterisk is immediately followed by a checksum represented as a two-digit hexadecimal number.
<CR><LF> ends the message.

Definition at line 98 of file nmea0183.h.

Constructor & Destructor Documentation

◆ Message0183() [1/2]

nmealib::nmea0183::Message0183::Message0183 ( const Message0183 & )

default

Copy constructor.

◆ Message0183() [2/2]

nmealib::nmea0183::Message0183::Message0183 ( Message0183 && )

defaultnoexcept

Move constructor.

◆ ~Message0183()

nmealib::nmea0183::Message0183::~Message0183 ( )

overridedefault

Destructor.

Member Function Documentation

◆ clone()

std::unique_ptr< nmealib::Message > nmealib::nmea0183::Message0183::clone ( ) const

overridevirtual

Creates a polymorphic deep copy of this Message0183.

Returns: std::unique_ptr<nmealib::Message> A unique pointer to the cloned message.

Implements nmealib::Message.

Reimplemented in nmealib::nmea0183::MTW, nmealib::nmea0183::MWV, nmealib::nmea0183::RMA, nmealib::nmea0183::RMB, nmealib::nmea0183::RMC, nmealib::nmea0183::VHW, nmealib::nmea0183::VLW, nmealib::nmea0183::VTG, nmealib::nmea0183::VWR, nmealib::nmea0183::XDR, nmealib::nmea0183::XTE, and nmealib::nmea0183::ZDA.

Definition at line 105 of file nmea0183.cpp.

◆ convertNmeaCoordinateToDecimalDegrees()

double nmealib::nmea0183::Message0183::convertNmeaCoordinateToDecimalDegrees ( const std::string & nmeaCoordinate )

static

Converts an NMEA coordinate in ddmm.mmmm / dddmm.mmmm format to decimal degrees.

Parameters

nmeaCoordinate Coordinate field as received from the sentence payload.

Returns: double Decimal degrees representation.

Definition at line 194 of file nmea0183.cpp.

◆ create()

std::unique_ptr< Message0183 > nmealib::nmea0183::Message0183::create	(	const std::string &	raw,
		TimePoint	ts = `std::chrono::system_clock::now()`
	)

staticprotected

Protected factory method to create a Message0183 from a raw sentence string.

Validates format and parses the raw sentence. Intended to be called from Nmea0183Factory or derived-class factories.

Parameters

raw	The raw NMEA 0183 sentence string to parse and validate.
ts	Optional timestamp; defaults to the current system time.

Returns: std::unique_ptr<Message0183> A unique pointer to the created Message0183 instance.

Exceptions

TooLongSentenceException	If the input string exceeds the maximum allowed length of 82 characters.
InvalidStartCharacterException	If the input string does not start with either '$' or '!'.

Definition at line 47 of file nmea0183.cpp.

◆ getCalculatedChecksumStr()

std::string nmealib::nmea0183::Message0183::getCalculatedChecksumStr ( ) const

noexcept

Get the calculated checksum string for the sentence payload.

Returns: std::string The checksum string calculated from the payload of the NMEA 0183 sentence, represented as a two-digit hexadecimal string.

Definition at line 132 of file nmea0183.cpp.

◆ getChecksumStr()

std::string nmealib::nmea0183::Message0183::getChecksumStr ( ) const

Get the checksum string extracted from the raw sentence.

Returns: std::string The checksum string extracted from the raw NMEA 0183 sentence, if present.

Exceptions

NoChecksumException If the sentence does not contain a checksum (i.e., no '*' character followed by two hex digits).

Definition at line 125 of file nmea0183.cpp.

◆ getPayload()

std::string nmealib::nmea0183::Message0183::getPayload ( ) const

noexcept

Returns the payload of the NMEA 0183 sentence.

The payload is the portion of the sentence between the start character and the checksum delimiter '*' (or end of data if no checksum is present).

Returns: std::string The sentence payload string.

Definition at line 109 of file nmea0183.cpp.

◆ getSentenceType()

std::string nmealib::nmea0183::Message0183::getSentenceType ( ) const

noexcept

Returns the sentence type identifier extracted from the sentence.

Returns: std::string A three-character sentence type code (e.g., "GGA", "RMC").

Definition at line 121 of file nmea0183.cpp.

◆ getStartChar()

char nmealib::nmea0183::Message0183::getStartChar ( ) const

noexcept

Returns the start character of the NMEA 0183 sentence.

Returns: char Either '$' (field-delimited) or '!' (encapsulated) sentence start character.

Definition at line 113 of file nmea0183.cpp.

◆ getStringContent()

std::string nmealib::nmea0183::Message0183::getStringContent ( bool verbose ) const

virtualnoexcept

Returns a human-readable string representation of the message content.

Parameters

verbose Selects whether to print a one-liner or a more detailed multi-line string with field names and values.

Returns: std::string The string representation of the message content

Definition at line 136 of file nmea0183.cpp.

◆ getTalker()

std::string nmealib::nmea0183::Message0183::getTalker ( ) const

noexcept

Returns the talker identifier extracted from the sentence.

Returns: std::string A two-character talker ID (e.g., "GP" for GPS, "II" for integrated instrumentation).

Definition at line 117 of file nmea0183.cpp.

◆ operator=() [1/2]

Message0183 & nmealib::nmea0183::Message0183::operator= ( const Message0183 & )

default

Copy assignment operator.

◆ operator=() [2/2]

Message0183 & nmealib::nmea0183::Message0183::operator= ( Message0183 && )

defaultnoexcept

Move assignment operator.

◆ operator==()

bool nmealib::nmea0183::Message0183::operator== ( const Message0183 & other ) const

noexcept

Compares two Message0183 objects for equality based on their content and timestamp.

Parameters

other The other Message0183 object to compare with.

Returns: true If all fields and the base Message data (including timestamp) are equal.; false Otherwise.

Definition at line 204 of file nmea0183.cpp.

◆ serialize()

std::string nmealib::nmea0183::Message0183::serialize ( ) const

overridevirtual

Returns the wire-format representation of the NMEA 0183 sentence, that is, the raw information that was passed when the message was created.

Returns: std::string A string with the wire-format

Implements nmealib::Message.

Definition at line 168 of file nmea0183.cpp.

◆ toString()

std::string nmealib::nmea0183::Message0183::toString ( bool verbose ) const

protectednoexcept

Provides the common string representation for every NMEA 0183 message, which can be used by derived classes to implement their own getStringContent method.

Parameters

verbose Selects wether to print a one-liner or a more detailed multi-line string with field names and values.

Returns: std::string the head of the stringified message

Definition at line 147 of file nmea0183.cpp.

◆ validate()

bool nmealib::nmea0183::Message0183::validate ( ) const

overridevirtualnoexcept

Returns whether the message is valid or not.

Returns: true If there is no checksum or if the checksum matches the calculated checksum for the payload; false If there is a checksum and it does not match the calculated checksum for the payload

Implements nmealib::Message.

Definition at line 172 of file nmea0183.cpp.

Friends And Related Symbol Documentation

◆ Nmea0183Factory

friend class Nmea0183Factory

friend

Definition at line 268 of file nmea0183.h.

Member Data Documentation

◆ calculatedChecksumStr_

std::string nmealib::nmea0183::Message0183::calculatedChecksumStr_

protected

Definition at line 225 of file nmea0183.h.

◆ checksumStr_

std::string nmealib::nmea0183::Message0183::checksumStr_

protected

Definition at line 224 of file nmea0183.h.

◆ payload_

std::string nmealib::nmea0183::Message0183::payload_

protected

Definition at line 223 of file nmea0183.h.

◆ sentenceType_

std::string nmealib::nmea0183::Message0183::sentenceType_

protected

Definition at line 222 of file nmea0183.h.

◆ startChar_

char nmealib::nmea0183::Message0183::startChar_

protected

Definition at line 220 of file nmea0183.h.

◆ talker_

std::string nmealib::nmea0183::Message0183::talker_

protected

Definition at line 221 of file nmea0183.h.

The documentation for this class was generated from the following files:

include/nmealib/nmea0183.h
src/nmea0183.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Message0183() [1/2]

◆ Message0183() [2/2]

◆ ~Message0183()

Member Function Documentation

◆ clone()

◆ convertNmeaCoordinateToDecimalDegrees()

◆ create()

◆ getCalculatedChecksumStr()

◆ getChecksumStr()

◆ getPayload()

◆ getSentenceType()

◆ getStartChar()

◆ getStringContent()

◆ getTalker()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ serialize()

◆ toString()

◆ validate()

Friends And Related Symbol Documentation

◆ Nmea0183Factory

Member Data Documentation

◆ calculatedChecksumStr_

◆ checksumStr_

◆ payload_

◆ sentenceType_

◆ startChar_

◆ talker_
